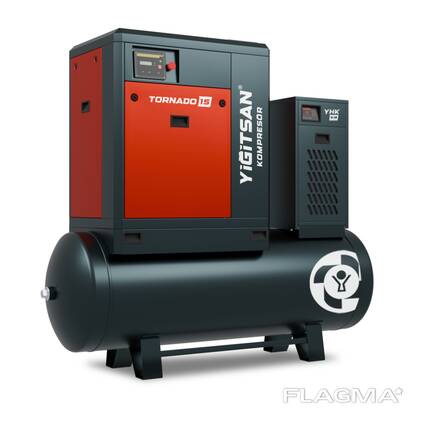

Tornado-15

Yiğitsan-manufactured, single-stage, PLC-controlled, inverter-driven, oil-injected, air-cooled stationary screw air compressor package unit.
Model SOFT DRIVE 60, 1 Unit
Free Air Efficiency: 7.6 m³/min according to Cagi Pneurop PN2CPTC2.
Working Pressure: 7.5 bar
Engine Power: 45 kW / 60 HP
Engine Origin: Turkey
Engine Efficiency / Protection Class: IE 3 / IP 55
Insulation Class: F
Control Type: Inverter / Variable Speed
Drive Type: Belt and Pulley
Control Panel: PLC / Yiğitsan
Radiator Origin: Turkey
Intake Group and Min. Pressure Valve Origin: Italy
Thermostatic Valve / Origin: Available / Turkey
Separator Type: Recessed
Noise Level: 76 dB(A) at 1 m
Oil Content in Compressed Air: 3 mg/m³
Oil Capacity: 20 L
Dimensions: 1370x1000x1470mm
Weight: 820 kg
STANDARDS
Flow-Pressure: C. A. G. I PNEUROP
PN2CPTC2
Noise Level: DIN 45635

NOTES: Equipped with world-renowned components, including the airend group, inverter, oil and air cooler radiator, and domestically produced valves, we offer a 2-year, unlimited hourly warranty on our locally assembled compressors. Our compressors meet CE, TSE, and ISO 9001 quality standards.

INVERTER ADVANTAGES:
Inverter compressors reduce energy consumption by adjusting motor speed to the plant's air demand. Depending on the plant's variable air consumption frequency, inverters provide energy savings of 25% to 35%. Furthermore, their wide capacity range ensures the desired amount of air is supplied continuously at a constant pressure. This provides additional energy savings and prevents the potential for pressure surges on sensitive equipment. The soft-start system extends engine life and prevents the effects of high starting currents on the power system.

User-based system planning and modern compressor design tailored to specific needs minimize unnecessary operating costs. Frequency converter compressors provide significant energy savings.
